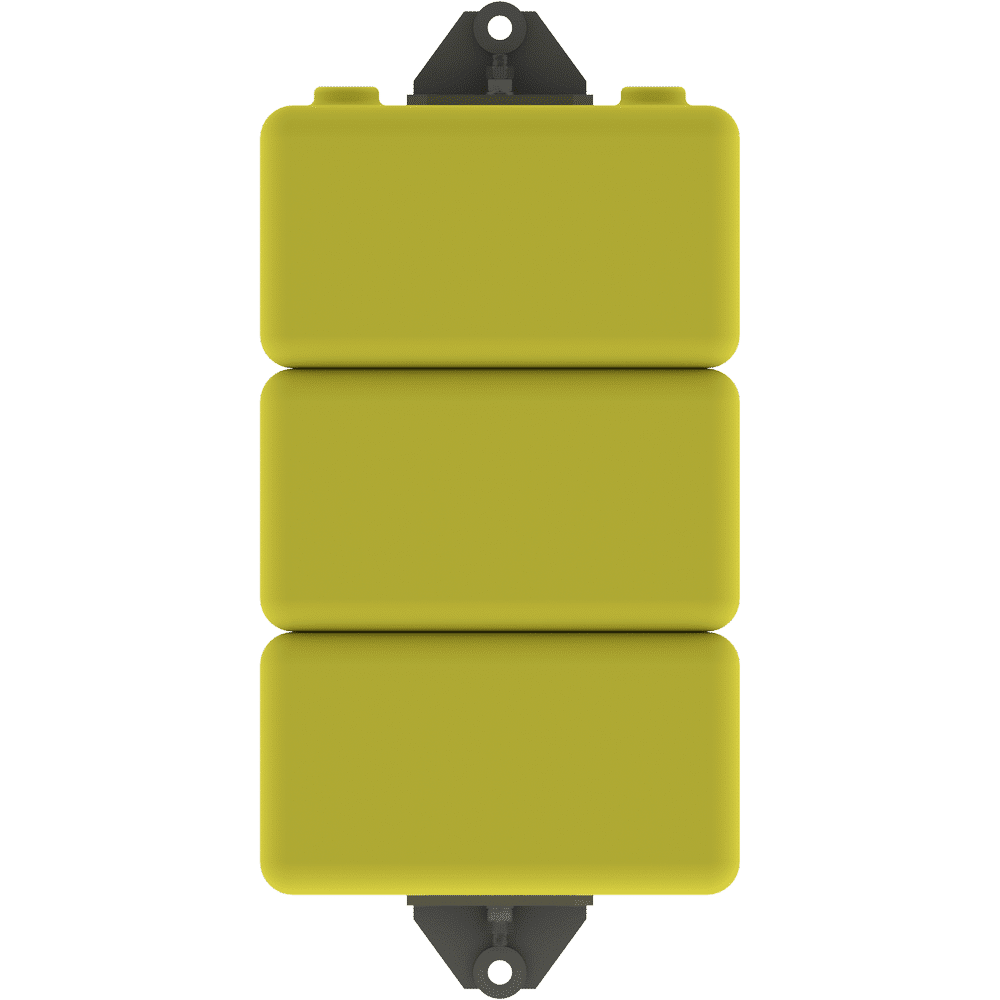

SSB 200/3-0
The SSB200 series is our smallest modular buoy. It consist of two module sizes and can be assembled in a wide range of combinations.
The combination of two element sizes enables precise correspondence to actual buoyancy needs. The elements have pegs for fitting into each other. Standard pad eyes have a MBL of 22t.
Standard color: bright yellow, optional: orange. Buoyancy figures are given seawater with a density of 1,025 kg/dm3. Weight figures are dry weight in air. Buoyancy figures are nominal net buoyancy.
| Depth | Buoyancy, kg | Weight, kg |
|---|---|---|
| Surface | 455 | 150 |
| 100 m | 405 | 205 |
| 250 m | 335 | 270 |
| 500 m | 310 | 295 |
| 800 m | 300 | 310 |
| 1000 m | 255 | 350 |
| 1500 m | 235 | 375 |
| 2000 m | 215 | 395 |
| 2500 m | 190 | 415 |
Additional information
| Dimensions | 720x720x1417mm |
|---|---|
| Depth Rating | 0, 100, 250, 500, 800, 1000, 1500, 2000, 2500 |
| Buoyancy | 190, 215, 235, 255, 300, 310, 335, 405, 455 |
