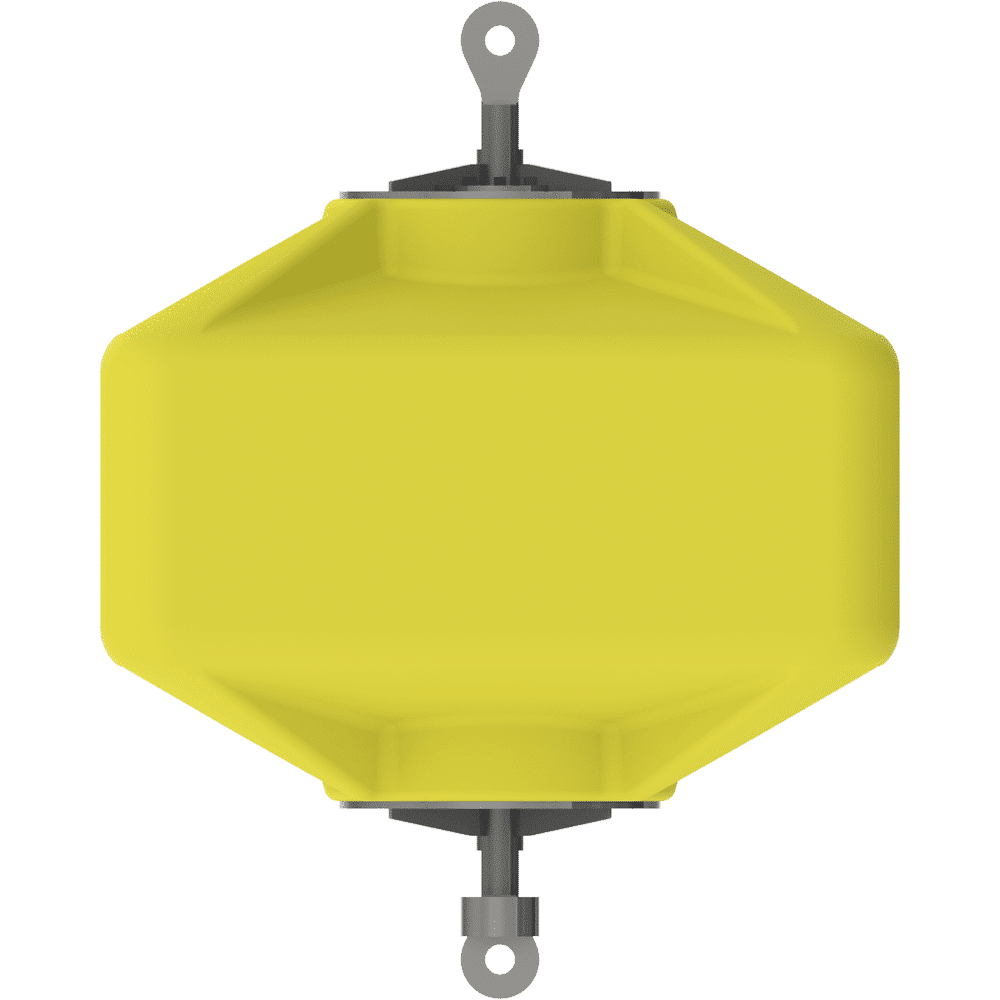

MSB 162/1
The MSB 162 series offers two different sizes, with two element types. The buoy has an elegant design, and is well suited to situations that demand a smaller buoy. The steel work has a MBL of 40t.
Standard color: bright yellow, optional: orange. Buoyancy figures are given seawater with density 1,025 kg/dm3. Weight figures are dry weight in air.
Buoyancy figures are nominal net Buoyancy.
| Depth (m) | Buoyancy (kg) | Weight (kg) |
|---|---|---|
| Surface | 1630 (1770) | 445 (290) |
| 100 m | 1440 (1580) | 630 (480) |
| 250 m | 1250 (1390) | 830 (670) |
| 500 m | 1160 (1290) | 920 (770) |
| 800 m | 1100 (1240) | 980 (820) |
| 1000 m | 1080 (1210) | 1000 (840) |
| 1500 m | 980 (1110) | 1100 (950) |
| 2000 m | 850 (980) | 1230 (1080) |
| 2500 m | 770 (910) | 1310 (1150) |
Description
Figures in parentheses are element only.
Additional information
| Dimensions | 1620x1620x2020mm |
|---|---|
| Buoyancy | 770, 850, 980, 1080, 1100, 1160, 1250, 1440, 1630 |
| Depth Rating | 0, 100, 250, 500, 800, 1000, 1500, 2000, 2500 |
